A MACHINE SHOP ON A BENCHTOP

3D Printer + CNC Mill

Hybrid Manufacturing

5 Axis Production

Automatic Tool Changes

Learn more about the

H-SERIES

what is

HYBRID MANUFACTURING?

3D PRINTING

CNC MILLING

Fast 3D printing + CNC precision

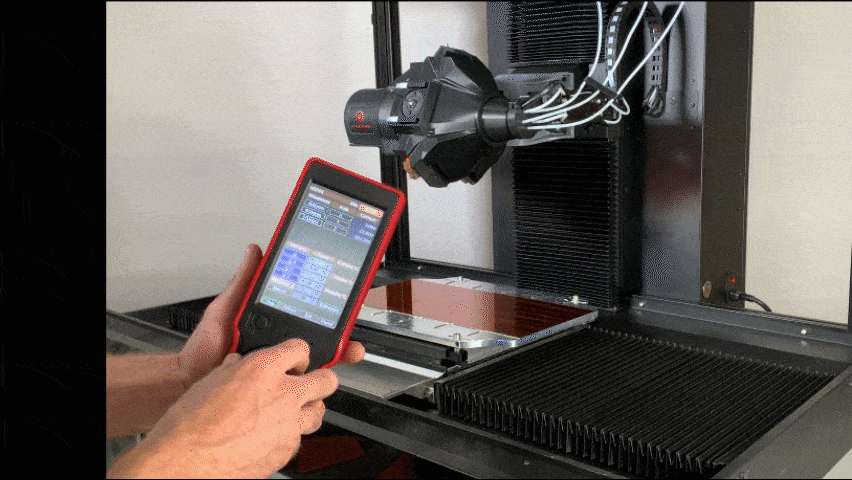

Single interface

Uninterrupted operations

The H-SERIES brings together the best of both worlds.

        SAVE

Money

strength

Accuracy

Time

Little or no

post-processing

Only use the material you need

Solid layer adhesion with hotter and faster extrusion

          IMPROVE

Greater dimensional accuracy than printing by itself

surface FINISH

High quality surface finish with fine miling

CONSOLIDATE YOUR EQUIPMENT NEEDS

Compact, Powerful and Affordable

Save space and get industry-level parts without sacrificing quality

BUILD VOLUME

3 AXIS: 416mm X x 186mm Y x 210mm Z

4 AXIS: 416mm X x 100mm Z (infinite drive in A)

5 AXIS: 150mm D x 100mm H cylinder (+/-100° A infinite drive in C)

1,100 mm

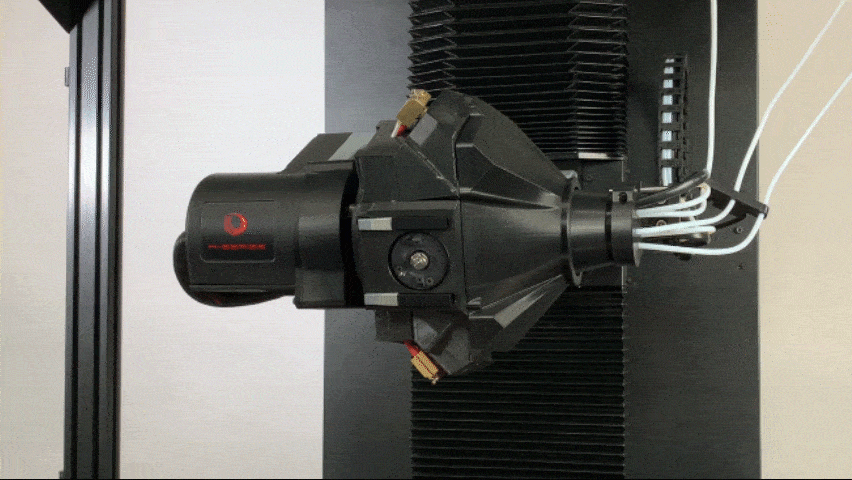

5 STATION AUTOMATIC TOOL CHANGER

up to 5 additive, 4 subtractive, or any combination



CLEANING STATION

Maintain print quality between filament changes

multi-material prints

Design for function, not material

Print ABS, PLA, NYLON, PETG, TPU, NINJAFLEX, water-soluble materials and more

UP TO

5 AXIS

PRODUCTION

03

axis

Standard Print Bed
Kapton print surface
Dovetail Bed
Attach stock directly to the bed with
M4 threaded holes
Flat Vise
Adjustable to full width, and can be
used in different orientations

04

axis

Rotary Axis w/ER32 Collet
Tailstock available for longer stock
Opposed Rotary Axes
Hold rectangular stock or use mandrels for rotary processing
Window Frame Fixture
Clamp long edges of flat stock

05

axis

Rotary + Rotary + Print Bed
Available in small and large sizes
Rotary + Rotary + ER32 Collet
Hold round stock
Rotary + Rotary + Vise
Hold square stock

3 AXIS

TOUCH PROBE

Automatic Bed Compensation

Edge Detection

Center-Finding

Machine Calibration

HEATED FILAMENT CABINET

 Controlled humidity for hygroscopic materials

BUILT WITH CNC PRECISION

ABSOLUTE ACCURACY  <50um/100mm

REPEATABILITY <10um



Stiff aluminum die castings machined to tight tolerances

Axes dialed in for flatness and perpendicularity

Preloaded C5 grade ballscrews for accurate zero-backlash motion

SPECIFICATIONS

H-Series specifications

APPLICATIONS

Snowboard rack
Print footwear and orthotics
Print mixed-material parts with grippers
Mixed material, sanitary, and skin-contact parts
Show More
END TO END MANUFACTURING SOLUTIONS

PROTOTYPE

Empower your R&D team with the ability to quickly create high fidelity prototypes

MAINTAIN

Reduce your spare parts inventory with on-site repairs using custom fixtures and tooling

MANUFACTURE

Make on-demand parts that are stronger, more durable, and more accurate than other 3D printers

CHECK OUT THE
H-SERIES IN ACTION

"This machine feels like it's going to change the game, allowing you to create not only more functional parts, but to do it faster and better."
